Product Summary

The SPU02N60C3 is a cool MOS power transistor.

Parametrics

SPU02N60C3 absolute maximum ratings: (1)Continuous drain current, ID, TC=25℃: 1.8A; TC=100℃: 1.1A; (2)Pulsed drain current, ID puls: 5.4A; (3)Avalanche energy, single pulse, ID=1.35A, VDD=50V, EAS: 50mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax, EAR: 0.07mJ; (5)Gate source voltage static, VGS: ±20V; (6)Gate source voltage AC, VGS: ±30V; (7)Power dissipation, TC=25℃, Ptot: 25W.

Features

SPU02N60C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv/dt rated; (5)Ultra low effective capacitances.

Diagrams

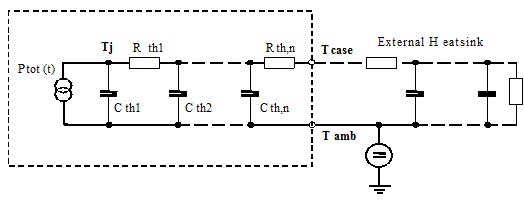

SPU02N60C3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPU02N60C3
SPU02N60C3
Infineon Technologies
MOSFET COOL MOS PWR TRANS 650V 1.8A
Data Sheet
0-1: $0.66
1-10: $0.59
10-100: $0.47
100-250: $0.41
