Product Summary
The PDTC144EE is an NPN resistor-equipped transistor. Its applications include especially suitable for space reduction in interface and driver circuits, inverter circuit configurations without use of external resistors.
Parametrics
PDTC144EE absolute maximum ratings: (1)VCBO, collector-base voltage: 50V; (2)VCEO, collector-emitter voltage: 50V; (3)VEBO, emitter-base voltage: 10V; (4)VI, positive: +40V; negative: -10V; (5)IO, output current: 100mA; (6)ICM, peak collector current: 100mA; (7)Ptot, total power dissipation: 150mW; (8)Tstg, storage temperature: 150℃.
Features
PDTC144EE features: (1)Built-in bias resistors R1 and R2; (2)Simplification of circuit disign; (3)Reduces number of components and board space.

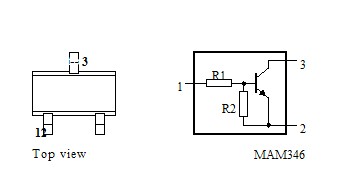

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PDTC144EE /T3 |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRANS RET TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PDTC144EE T/R |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRANS RET TAPE-7 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PDTC144EE,135 |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRANS RET TAPE-11 |
Data Sheet |
|
|
||||||||||||
|
PDTC144EE,115 |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRANS RET TAPE-7 |
Data Sheet |
|
|
||||||||||||
 |
PDTC144EEF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
