Product Summary
The NTR4501NT1G is a Power MOSFET. Its applications include Load/power switch for portable, load/power switch for computing, DC-DC conversion.
Parametrics
NTR4501NT1G absolute maximum ratings: (1)Drain-to-source voltage: 20V; (2)Gate-to-source voltage: ±12V; (3)Continuous drain current, ID, TA=25℃:3.2A; TA=85℃: 2.4A; (4)Steady state power dissipation, PD: 1.25W; (5)Pulsed drain current, IDM: 10.0A; (6)Operating junction and storage temperature, TJ, Tstg: -55 to 150℃; (7)Continuous source current, IS: 1.6A; (8)Lead temperature for soldering purposes, TL: 260℃.
Features
NTR4501NT1G features: (1)Leading planar technology for low gate charge/fast switching; (2)2.5V rated for low voltage gate drive; (3)SOT-23 surface mount for small footprint; (4)NSTR prefix for automotive and other applications requiring unique site and control change requirements; (5)These devices are Pb-free and are RoHS compliant.

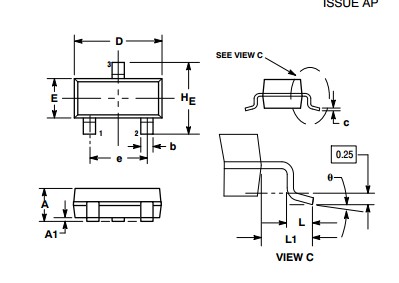

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NTR4501NT1G |
ON Semiconductor |
MOSFET 20V 3.2A N-Channel |
Data Sheet |
|
|
||||||||||||
