Product Summary

The NIF5002NT1G is a Power MOSFET. It is a self-protected FET with temperature and current limit. The applications of the NIF5002NT1G include lighting, solenoids, small motors.

Parametrics

NIF5002NT1G absolute maximum ratings: (1)Drain-to-source voltage internally clamped, VDSS: 42V; (2)Drain-to-gate voltage internally clamped, VDGR: 42V; (3)Power dissipation, PD: 1.1W; (4)Operating junction and storage temperature, TJ, Tstg: -55 to 150℃; (5)Single pulse drain-to-source avalanche energy, EAS: 150mJ.

Features

NIF5002NT1G features: (1)Current limitation; (2)Thermal shutdown with automatic restart; (3)Short circuit protection; (4)IDSS specified at elevated temperature; (5)Avalanche energy specified; (6)Slew rate control for low noise switching; (7)Overvoltage clamped protection; (8)Pb-free packages are available.

Diagrams

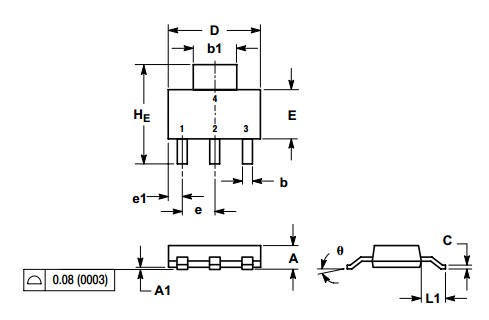

NIF5002NT1G dimensions
