MAX3514EEP-T

Upstream CATV Amplifier, SSOP-20, -0.3V to +10.0V, 2200mW, 120mA, 65MHz Input

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.18~1.18 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.18~1.18

PartNumber:: MAX3514EEP-T

Brand:: Maxim Integrated Products - Maxim | Pack: SSOP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-20

From Other Seller

Part Number:MAX3514EEP-T
US $1.18 - 1.18
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

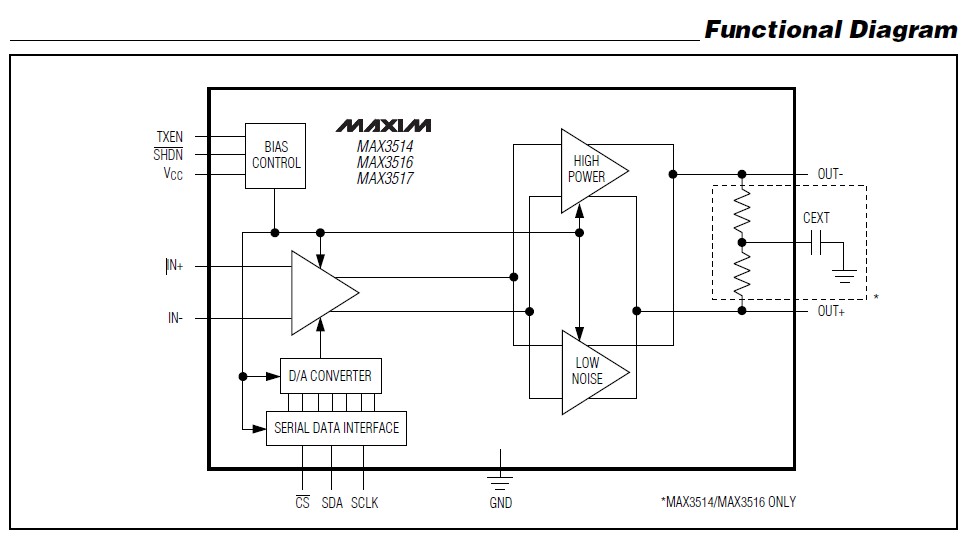

The MAX3514EEP-T programmable-gain amplifier is designed for use in CATV upstream applications. The MAX3514EEP-T drives up to +61dBmV (QPSK) into a 75Ω load when driven with a +34dBmV nominal input signal. The MAX3514EEP-T drives up to +64dBmV (QPSK). Both input and output ports are differential, requiring that an external balun be used at the output port. The variable gain feature provides greater than 56dB of dynamic range, which is controlled by an SPI. 3-wire interface. Gain control is available in 0.5dB steps. The MAX3514EEP-T operates over a frequency range of 5MHz to 65MHz. The MAX3514EEP-T is a pin-for-pin compatible upgrade for the MAX3510. Like the MAX3510, the MAX3514EEP-T is internally matched for use with a 2:1 (voltage ratio) balun.

Parametrics

MAX3514EEP-T absolute maximum ratings: (1)VCC, OUT+, OUT -0.3V to +10.0V; (2)Input Voltage Levels (all inputs) -0.3V to (VCC + 0.3V); (3)Continuous Input Voltage (IN+, IN-) 2Vp-p; (4)Continuous Current (OUT+, OUT-) 120mA; (5)Continuous Power Dissipation (TA = +70℃); (6)20-Pin QSOP (derate 12.3mW/℃ above TA = +70℃) 988mW; (7)20-Pin TSSOP-EP(derate 27mW/℃ above TA = +70℃)2200mW.

Features

MAX3514EEP-T features: (1)Accurate Gain Control; (2)Gain Programmable in 0.5dB Steps; (3)56dB of Gain Control Range; (4)-55dBc Harmonic Distortion at 65MHz Input; (5)Low Burst On/Off Transient; (6)High Efficiency: 35mA at +34dBmV Out. 8mA Transmit Disable Mode.
