Product Summary

The 2SK3582TK-A is a TOSHIBA Field Effect Transistor. The application of the 2SK3582TK-A include Ultra-compact ECM.

Parametrics

2SK3582TK-A absolute maximum ratings: (1)Gate-Drain voltage: -20 V; (2)Gate Current: 10 mA; (3)Drain power dissipation (Ta = 25℃): 100 mW; (4)Junction Temperature: 125 ℃; (5)Storage temperature range: -55~125 ℃.

Features

2SK3582TK-A electrical characteristics: (1)Drain Current: 80 to 300 μA; (2)Drain Current: 340 μA; (3)Gate-Source Cut-off Voltage: -0.1 to -0.65 V; (4)Forward transfer admittance: 0.55 to 1.0 mS; (5)Gate-Drain Voltage: -20 V; (6)Input capacitance: 3.6 pF; (7)Voltage Gain: -5.0 to +2.0 dB; (8)Delta Voltage Gain: 0 to -1.0 dB; (9)Delta Voltage Gain DGv(V): -1.0 to -3.0 dB; (10)Noise Voltage: 50 mV; (11)Total Harmonic Distortion: 1.0 %; (12)Time Output Stability tos: 100 to 200 ms.

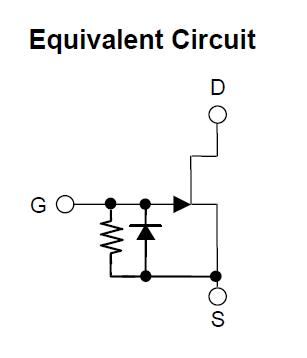

Diagrams
