Product Summary
The LTL431ALT1G is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref(approximately 2.5V)and 36V with two external resistors. The LTL431ALT1G provides very wide applications, including shunt regulator, series regulator, switching regulator, voltage reference and others.
Parametrics
LTL431ALT1G absolute maxing ratings: (1)Cathode voltage VKA: 36A; (2)Cathode current range(continuous) IKA: -100~+150mA; (3)Reference input current range Iref: -0.05~+10mA; (4)Operating junction temperature Tj: 150℃; (5)Operating ambient temperature Topr: 0~70/-40~+85℃; (6)Storage temperature Tstg: -65~+150℃.
Features
LTL431ALT1G features: (1)Programmable output voltage to 36V; (2)Low dynamic output impedance 0.2Ω; (3)Sink current capability of to 100mA; (4)Equivalent full-range temperature coefficient of 50ppm/℃ typical for operation over full rated operating temperature range.

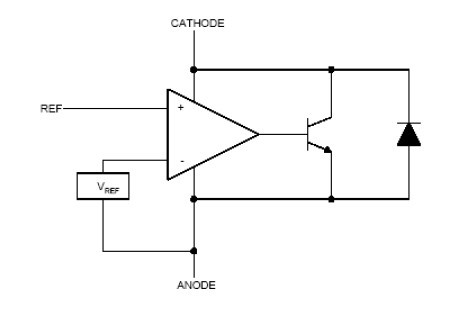

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTL431ALT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LTL431ALT1G* |
Other |
|
Data Sheet |
Negotiable |
|
||||
