Product Summary
The LM324ADR is a quadruple operational amplifier. It consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply of LM324ADR over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of LM324ADR is independent of the magnitude of the supply voltage.
Parametrics
LM324ADR absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32 V; (2)Differential input voltage, VID: ±32 V; (3)Input voltage, VI (either input): -0.3 to 32 V; (4)Duration of output short circuit (one amplifier) to ground at (or below) TA = 25℃, VCC ≤ 15 V: Unlimited; (5)Package thermal impedance, θJA: D package: 86 ℃/W, N package: 80 ℃/W, DB package: 96 ℃/W, NS package: 76 ℃/W, PW package: 113 ℃/W; (6)Package thermal impedance: J package: 15.05 ℃/W, W package: 14.65 ℃/W; (7)Operating virtual junction temperature: 150 ℃; (8)Case temperature for 60 seconds: FK package: 260 ℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or W package: 300 ℃; (10)Storage temperature range, Tstg: -65 to 150 ℃.
Features
LM324ADR features: (1)2-kV ESD Protection for: LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV; (2)Wide Supply Ranges: Single Supply: 3 V to 32 V (26 V for LM2902), Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2902); (3)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (4)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground.

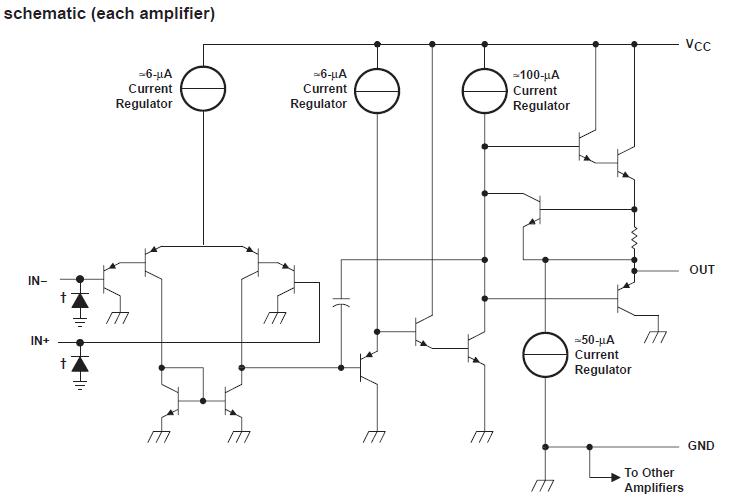

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM324ADR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad GP Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM324ADR2 |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-32V Quad 3mV VIO |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM324ADR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-32V Quad 3mV VIO Commercial Temp |
Data Sheet |
|
|
||||||||||||
|
LM324ADRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM324ADRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad General Purpose Op Amp |
Data Sheet |
|
|
||||||||||||
