Product Summary
The BZD27C6V2P-GS08 is a zener diode.
Parametrics
BZD27C6V2P-GS08 absolute maximum ratings: (1)Power dissipation, TL=80℃, Ptot: 2.3W; TA=25℃, Ptot: 0.8W; (2)Non-repetitive peak pulse power dissipation, PZSM: 300W; 10/1000 μs waveform, PRSM: 150W; 10/1000μs waveform, PRSM: 100W; (3)Maximum operating temperature: +150℃; (4)Maximum zener impedance: 3Ohms; (5)Maximum reverse leakage current: 5uA.
Features
BZD27C6V2P-GS08 features: (1)Sillicon planar zener diodes; (2)Low profile surface-mount package; (3)Zener and surge current specification; (4)Low leakage current; (5)Excellent stability; (6)High temperature soldering: 260℃/10 sec. at terminals; (7)Lead (Pb)-free component; (8)Component in accordance to RoHS 2002/95/EC.

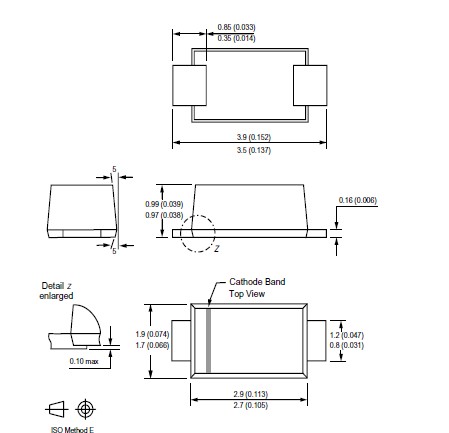

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BZD27C6V2P-GS08 |
Vishay Semiconductors |
Zener Diodes 6.2 Volt 0.8 Watt 5% |
Data Sheet |
|
|
||||||
