Product Summary
The BAV170T-7-F is a surface mount low leakage diode.
Parametrics
BAV170T-7-F absolute maximum ratings: (1)Working peak reverse voltage, VRWM: 85V; (2)RMS reverse voltage, VR(RMS): 60V; (3)Forward continuous current, IFM: 215/125mA; (4)Repetitive peak forward current, IFRM: 500mA; (5)Non-repetitive peak forward suge current, IFSM: 4.0A.
Features
BAV170T-7-F features: (1)Ultra-small surface mount package; (2)Very low leakage current; (3)Lead free/ RoHS compliant; (4)Qualified to AEC-Q101 standards for high reliability.

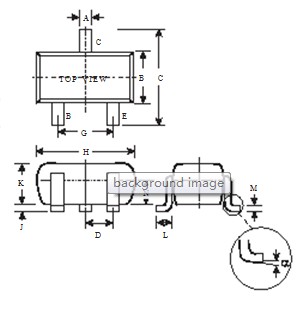

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BAV170T-7-F |
Diodes Inc. |
Rectifiers 85V 150mW |
Data Sheet |
|
|
|||||||||||||
