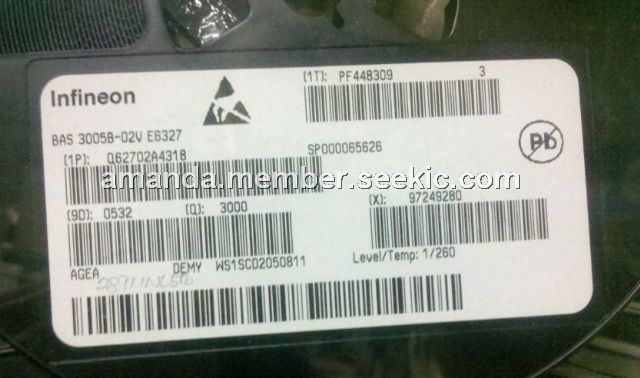

BAS3005B-02V

AF schottky diode, SOT-323, 30V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.03~0.05

PartNumber:: BAS3005B-02V

Brand:: Infineon Technologies AG - Infineon | Pack: SOT | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-21

From Other Seller

Part Number:BAS3005B-02V
US $0.03 - 0.05
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BAS3005B-02V is a medium power AF schottky diode.

Parametrics

BAS3005B-02V absolute maxing ratings: (1)Diode reverse voltage VR: 30V; (2)Forward current IF: 500mA; (3)Average rectified forward current (50/60Hz, sinus) IFAV: 500mA; (4)Repetitive peak forward current(tp≤1ms, D≤0.25)IFRM: 3.5A; (5)Non-repetitive peak surge forward current(t≤10ms)IFSM: 5A; (6)Junction temperature Tj: 150℃; (7)Operating temperature range Top: -55 to 125℃; (8)Storage temperature Tstg: -65 to 150℃.

Features

BAS3005B-02V features: (1)Forward current: 0.5 A; (2)Reverse voltage: 30 V; (3)Low capacitance, low reverse current; (4)For high efficiency DC/DC conversion, fast switching, protecting and clamping applications; (5)Pb-free (RoHS compliant) package1); (6)Qualified according AEC Q101.
