Product Summary

The BA277 is a Planar high performance band-switching diode in a small plastic SOD523 (SC-79) SMD package. The applications of the BA277 include Low loss band switching in VHF television tuners, Surface mount band-switching circuits.

Parametrics

BA277 absolute maximum ratings: (1)continuous reverse voltage: 35 V; (2)continuous forward current: 100 mA; (3)total power dissipation: 715 mW at Ts = 90 ℃; (4)storage temperature: -65 to +150 ℃; (5)junction temperature: -65 to +150 ℃.

Features

BA277 features: (1)Small plastic SMD package; (2)Continuous reverse voltage: max. 35 V; (3)Continuous forward current: max. 100 mA; (4)Low diode capacitance: max. 1.2 pF; (5)Low diode forward resistance: max. 0.7 Ω.

Diagrams

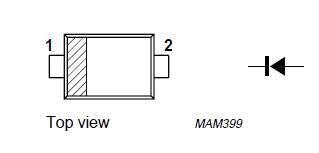

BA277 Simplified outline

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BA277
BA277
Other

Data Sheet
Negotiable
BA277 T/R
BA277 T/R
NXP Semiconductors
PIN Diodes TAPE-7 DIO-RFSS
Data Sheet
Negotiable
BA277,115
BA277,115
NXP Semiconductors
PIN Diodes TAPE-7 DIO-RFSS
Data Sheet
0-1: $0.06
1-25: $0.05
25-100: $0.05
100-250: $0.05
BA277,135
BA277,135
NXP Semiconductors
Diodes (General Purpose, Power, Switching) Switching Diodes 1.2pF 715mW
Data Sheet
0-1: $0.22
1-25: $0.17
25-100: $0.09
100-500: $0.07
BA277,335
BA277,335
NXP Semiconductors
Diodes (General Purpose, Power, Switching) Switching Diodes 1.2pF 715mW
Data Sheet
0-13600: $0.04
13600-25000: $0.03
BA277-01
BA277-01
Other

Data Sheet
Negotiable
