Product Summary
The B230-13 is a 2.0A surface mount schottky barrier rectifier.
Parametrics
B230-13 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 30 V; (2)Working Peak Reverse Voltage: 30 V; (3)DC Blocking Voltage: 30 V; (4)RMS Reverse Voltage: 21 V; (5)Average Rectified Output Current @ TT = 100℃: 2.0 A; (6)Non-Repetitive Peak Forward Surge Current, 8.3ms Single Half Sine-Wave Superimposed on Rated Load: 50 A.
Features
B230-13 features: (1)Guard Ring Die Construction for Transient Protection; (2)Ideally Suited for Automated Assembly; (3)Low Power Loss, High Efficiency; (4)Surge Overload Rating to 50A Peak; (5)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application; (6)High Temperature Soldering: 260℃/10 Second at Terminal; (7)Lead Free Finish/RoHS Compliant; (8)Green Molding Compound (No Halogen and Antimony).

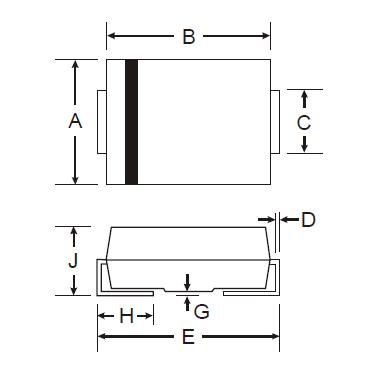

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B230-13 |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 30V 2A |
Data Sheet |
Negotiable |
|
|||||||||||||
B230-13-F |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 30V 2A |
Data Sheet |
|
|
