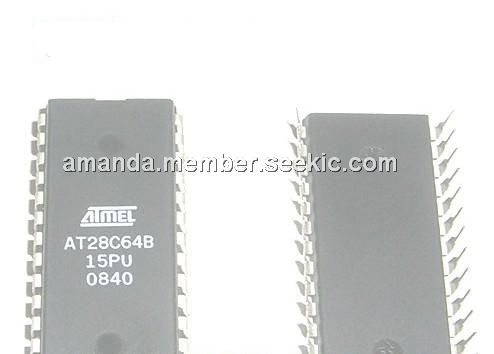

AT28C64B-15PU

28DIP, readonly memory, high-performance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~1.90

PartNumber:: AT28C64B-15PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-21

From Other Seller

Part Number:AT28C64B-15PU
US $1.50 - 1.90
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

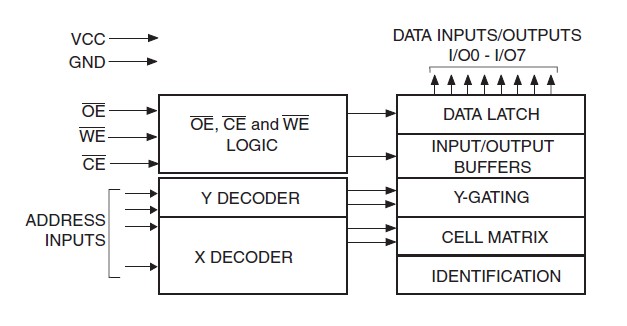

The AT28C64B-15PU is a high-performance electrically-erasable and programmable readonly memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 220 mW. When the device is deselected, the CMOS standby current is less than 100 μA. The AT28C64B-15PU is accessed like a Static RAM for the read or write cycle without the need for external components. The AT28C64B-15PU contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. During a write cycle, the addresses and 1 to 64 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer. The end of a write cycle can be detected by DATA POLLING of I/O7. Once the end of a write cycle has been detected, a new access for a read or write can begin.

Parametrics

AT28C64B-15PU absolute maximum ratings: (1)Storage Temperature: -65℃to +150℃ (2)All Input Voltages(including NC Pins); (3)with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C64B-15PU features: (1)Fast Read Access Time-150 ns; (2)Automatic Page Write Operation; (3)Fast Write Cycle Times; (4)Low Power Dissipation; (5)Hardware and Software Data Protection; (6)DATA Polling and Toggle Bit for End of Write Detection; (7)High Reliability CMOS Technology; (8)Single 5V ?0% Supply; (9)CMOS and TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte-wide Pinout; (11)Industrial Temperature Ranges; (12)Green (Pb/Halide-free) Packaging Option.
