The AP1212HSL-13 is a dual USB high-side power switch. Its applications include USB hubs, hot plug-in power supplies, battery-charger circuits.
Parametrics
AP1212HSL-13 absolute maximum ratings: (1)VIN, Supply voltage: +7V; (2)VFLG, fault flag voltage: +7V; (3)IFLG, fault flag current: 50mA; (4)VOUT, output voltage: +7V; (5)VEN, control input range: -0.3 to VIN+2V; (6)TST, storage temperature: -65 to +150℃.
Features
AP1212HSL-13 features: (1)Compliant to USB specifications; (2)Dual independent switches control; (3)2.7V to 5.5V input voltage; (4)500mA minimum continuous curent per port; (5)110mΩ typical on-resistance; (6)1.25A maximum short circuit current limit; (7)Independent open-drain fault flag pins; (8)100μA typical on-state supply current; (9)1μA typical off-state supply current; (10)Output can be forced higher than input; (11)Thermal shutdown; (12)2.4V typical under voltage lockout; (13)1ms turn-on and fast turn-off; (14)Enable active-high or active-low; (15)Lead free finish/RoHS compliant.

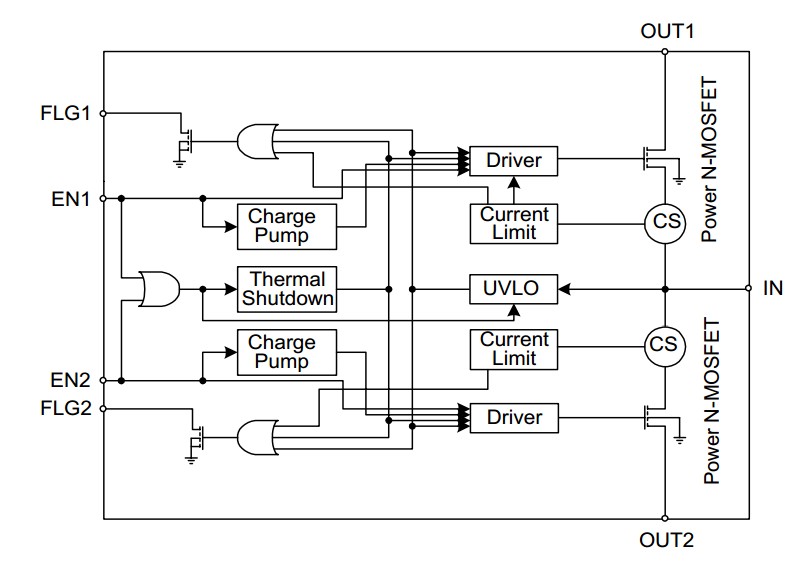

Diagrams
