Product Summary
The BZV55-C3V3 is a Low-power voltage regulator diode in small hermetically sealed glass SOD80C SMD package. It is available in the normalized E24 ±2% (BZV55-B) and approx. ±5% (BZV55-C) tolerance range. The BZV55-C3V3 consists of 37 types with nominal working voltages from 2.4 to 75 V. The applications of the BZV55-C3V3 include Low voltage stabilizers or voltage references.
Parametrics
BZV55-C3V3 absolute maximum ratings: (1)continuous forward current: 250 mA max; (2)total power dissipation: 400 mW at Tamb ≤ 50 ℃, 500 mW at tie-point ≤ 50 ℃; (3)non-repetitive peak reverse power dissipation: 40 W at tp = 100 ms; square wave; Tj = 25 ℃ prior to surge; (4)storage temperature: -65 to +200 ℃; (5)junction temperature: -65 to +200 ℃.
Features
BZV55-C3V3 features: (1)Total power dissipation: max. 500 mW; (2)Two tolerance series: ±2%, and approx. ±5%; (3)Working voltage range: nom. 2.4 to 75 V (E24 range); (4)Non-repetitive peak reverse power dissipation: max. 40 W.

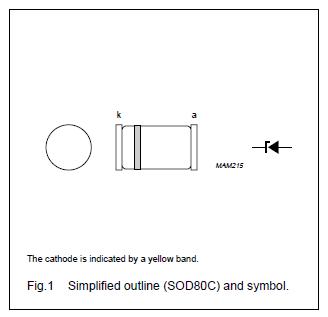

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BZV55-C3V3 /T3 |
NXP Semiconductors |
Zener Diodes DIODE ZENER 5 PCT TAPE-13 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BZV55-C3V3,135 |
NXP Semiconductors |
Zener Diodes DIODE ZENER 5 PCT |
Data Sheet |
|
|
||||||||||||
|
BZV55-C3V3,115 |
NXP Semiconductors |
Zener Diodes DIODE ZENER 5 PCT TAPE-7 |
Data Sheet |
|
|
||||||||||||
