Product Summary
The ADM809TARTZ-REEL7 is a microprocessor supervisory circuit in 3-pin SOT-23. Its applications include microprocessor systems, computers, controllers, intelligent instruments, automotive systems.
Parametrics
ADM809TARTZ-REEL7 absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)Input current: 20mA; (3)Output current: 20mA; (4)Rate of rise: 100V/μs; (5)Power dissipation: 320mW; (6)Lead temperature: +300℃; (7)Storage temperature range: -65 to +150℃.
Features
ADM809TARTZ-REEL7 features: (1)Superior upgrade for MAX809/MAX810; (2)Specified over temperature; (3)Low power consumption; (4)Precision voltage monitor: +3V, +3.3V, +5V options; (5)Reset assertion down to 1V VCC; (6)140ms min power-on reset.

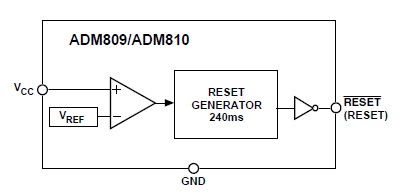

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

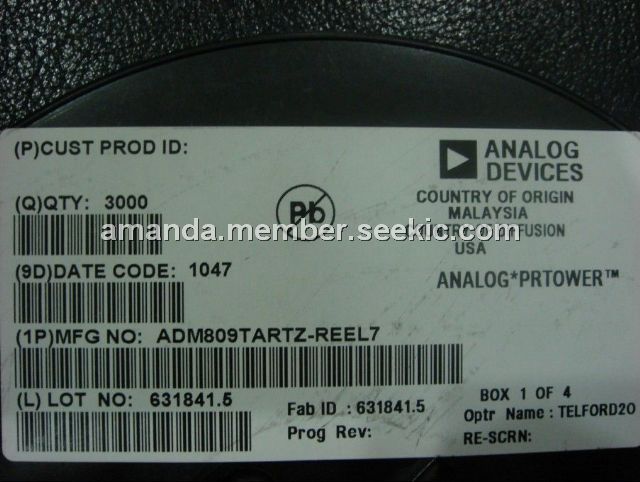

 ADM809TARTZ-REEL7 |
|
IC SUPERVSR PUSHPULL 3.08V SOT23 |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
ADM800 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
ADM800L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
ADM800LAN |
Analog Devices Inc |
IC SUPERVISOR MPU 4.65V PS 16DIP |
Data Sheet |
|
|
||||||||
|
ADM800M |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
 |
ADM800MARN |
|
IC SUPERVISOR MPU 4.40V 16SOIC |
Data Sheet |
|
|
||||||||
|
ADM800MARN-REEL |
|
IC SUPERVISOR MPU 4.40V 16SOIC |
Data Sheet |
|
|
||||||||
