Product Summary

The 593D107X9016D2T is a solid Tantalum surface mount capacitor. It offers state-of-the-art low ESR for switch Mode Power Supplies and DC/DC Converters.

Parametrics

593D107X9016D2T characteristics: (1)Operating Temperature: - 55℃ to + 125℃; (2)Capacitance Range: 0.47μF to 680μF; (3)Capacitance Tolerance: ±5 %, ±10 %, ±20 %; (4)100 % Surge Current Tested (B, C, D and E Case Sizes); (5)Voltage Rating: 4VDC to 50VDC.

Features

593D107X9016D2T features: (1)Terminations: 100 % Matte Tin, standard, Tin/Lead available; (2)Compliant terminations; (3)Molded case available in five case codes; (4)Compatible with high Volume automatic pick and place equipment; (5)High ripple current carrying capability; (6)Low ESR; (7)Meets IEC Specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements.

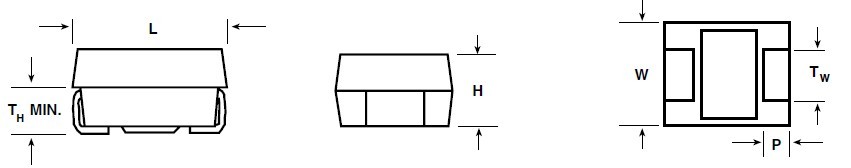

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
593D107X9016D2T
593D107X9016D2T
Vishay/Sprague
Tantalum Capacitors - Solid SMD 100uF 16volts 10% D case Molded
Data Sheet
0-1: $1.04
1-10: $0.86
10-50: $0.83
50-100: $0.77
593D107X9016D2TE3
593D107X9016D2TE3
Vishay/Sprague
Tantalum Capacitors - Solid SMD 100uF 16volts 10% D case Molded
Data Sheet
0-1: $1.24
1-10: $1.01
10-50: $0.92
50-100: $0.82
