Product Summary

The 593D476X9010B2TE3 is a Solid Tantalum Chip Capacitor, which is designed for Switch Mode Power Supplies and Converters.

Parametrics

593D476X9010B2TE3 absolute maximum ratings: (1)Operating Temperature: - 55℃ to + 85℃ (To +125℃ with voltage derating.); (2)Capacitance Range: 0.47μF to 680μF; (3)Capacitance Tolerance: ± 20%, ± 10% standard; (4)Compliant Terminations: 100% Surge Current Tested (C, D, & E Case Sizes); (5)Voltage Rating: 4 WVDC to 50 WVDC.

Features

593D476X9010B2TE3 features: (1)Molded case available in five case codes; (2)Compatible with "High Volume" automatic pick and place equipment; (3)High Ripple Current carrying capability; (4)Low ESR; (5)Meets EIA 535BAAE and IEC Specification QC300801/ US0001.

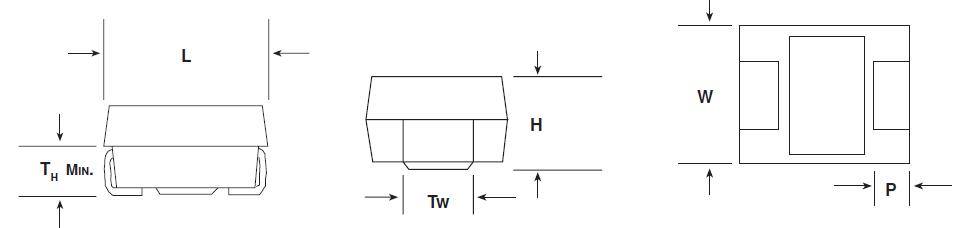

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

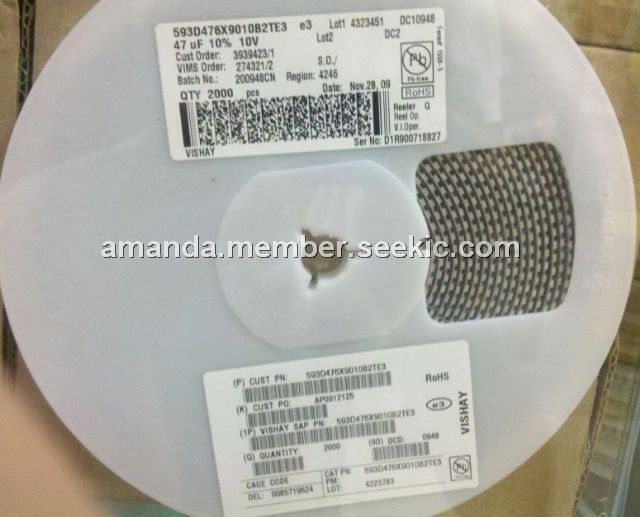

593D476X9010B2TE3
593D476X9010B2TE3

Vishay/Sprague

Tantalum Capacitors - Solid SMD 47uF 10volts 10% B case Molded

Data Sheet

0-1: $0.41
1-10: $0.38
10-50: $0.36
50-100: $0.32
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
593D
593D

Other


Data Sheet

Negotiable
593D105X0020A2TE3
593D105X0020A2TE3


CAP TANT 1UF 20V 20% 1206

Data Sheet

0-2000: $0.11
593D105X0025A2TE3
593D105X0025A2TE3


CAP TANT 1UF 25V 20% 1206

Data Sheet

0-2000: $0.11
593D105X0035A2T
593D105X0035A2T

Vishay/Sprague

Tantalum Capacitors - Solid SMD 1uF 35volts 20% A case Molded

Data Sheet

0-1: $0.32
1-10: $0.30
10-50: $0.28
50-100: $0.25
593D105X0035A2TE3
593D105X0035A2TE3

Vishay/Sprague

Tantalum Capacitors - Solid SMD 1uF 35volts 20% A case Molded

Data Sheet

0-1: $0.22
1-10: $0.20
10-50: $0.18
50-100: $0.17
593D105X0035B2TE3
593D105X0035B2TE3


CAP TANT 1UF 35V 20% 1411

Data Sheet

0-2000: $0.14
