Product Summary

The 2SC5053 is a medium power transistor.

Parametrics

2SC5053 absolute maximum ratings: (1)Collector-base voltage, VCBO: 60V; (2)Collector-emitter voltage, VCEO: 50V; (3)Emitter-base voltage, VEBO: 5V; (4)Collector current, IC: 1A; (5)Collector power dissipation, PC: 0.5W; (6)Collector power dissipation, tj: 150℃; (7)Storage temperature, tstg: -55 to +150℃.

Features

2SC5053 features: (1)Low saturating voltage, typically VCE=0.12V at IC/IB=500mA/50mA; (2)PC=2W; (3)Complements the 2SA1900.

Diagrams

2SC5053 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

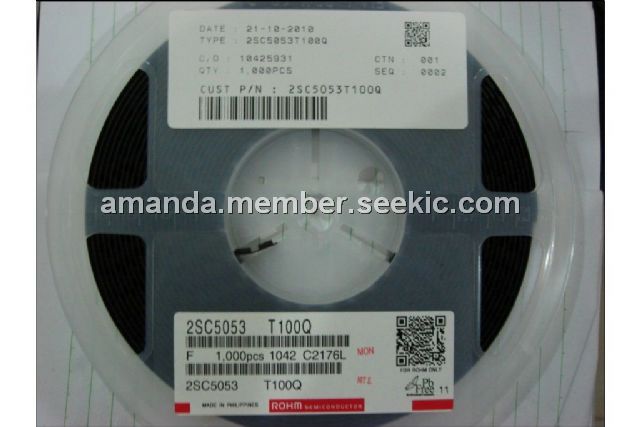

2SC5053
2SC5053
Other

Data Sheet
Negotiable
2SC5053T100Q
2SC5053T100Q
ROHM Semiconductor
Transistors Bipolar (BJT) NPN 50V 1A
Data Sheet
0-1: $0.32
1-25: $0.24
25-100: $0.18
100-500: $0.11
500-1000: $0.09
2SC5053T100R
2SC5053T100R
ROHM Semiconductor
Transistors Bipolar (BJT) NPN 50V 1A
Data Sheet
0-1: $0.26
1-25: $0.20
25-100: $0.16
100-500: $0.11
500-1000: $0.08
