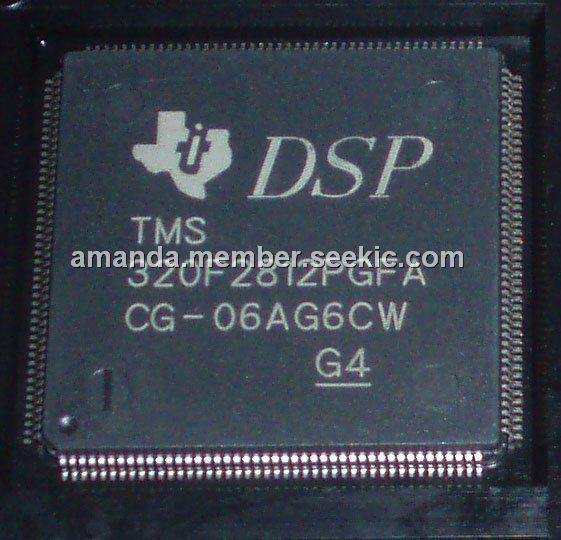

TMS320F2812PGFA

digital signal processor, QFP, -0.3V to 4.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $21.00~22.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $21.00~22.00

PartNumber:: TMS320F2812PGFA

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-21

From Other Seller

Part Number:TMS320F2812PGFA
US $21.00 - 22.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TMS320F2812PGFA is a digital signal processor. It is a highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F2812PGFA absolute maxing ratings: (1)Supply voltage range, VDD, PLLVCCA, VDDO, and VCCA: -0.3 V to 4.6 V; (2)Supply voltage range, CVDD: -0.5 V to 2 V; (3)VCCP range: -0.3 V to 3.6 V; (4)Input voltage range, VIN: -0.3 V to 4.6 V; (5)Output voltage range, VO: -0.3 V to 4.6 V; (6)Output voltage range,VO: -0.3 V to 4.6 V; (7)Input clamp current, IIK (VIN < 0 or VIN > VCC): ±20 mA; (8)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (9)Operating free-air temperature ranges, TA: A version: -40℃ to 85℃; S version: -40℃ to 125℃; (10)Junction temperature range, TJ: -40℃ to 150℃; (11)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TMS320F2812PGFA features: (1)Boot ROM (4K × 16): With Software Boot Modes; Standard Math Tables; (2)External Interface(F2812): Up to 1.5M Total Memory; Programmable Wait States; Programmable Read/Write Strobe Timing; Four Individual Chip Selects; (3)Clock and System Control: Dynamic PLL Ratio Changes Supported; On-Chip Oscillator; Watchdog Timer Module; (4)Three External Interrupts; (5)Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts.
