Product Summary
The TC75S56FU is a CMOS general purpose single comparator.
Parametrics
TC75S56FU absolute maximum ratings: (1)Supply voltage, VDD, VSS: ±3.5 or 7V; (2)Differential input voltage, DVIN: ±7V; (3)Input voltage, VIN: VSS-VDD V; (4)Output current, IOUT: ±35mA; (5)Power dissipation, PD: 200mW; (6)Operating temperature, Topr: -40 to 85℃; (7)Storage temperature, Tstg: -55 to 125℃.
Features
TC75S56FU features: (1)Low current power supply: IDD=10μA; (2)Single power supply operation; (3)Wide common mode input voltage range: VSS to VDD-0.9V; (4)Push pull output circuit; (5)Low input bias current; (6)Small package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

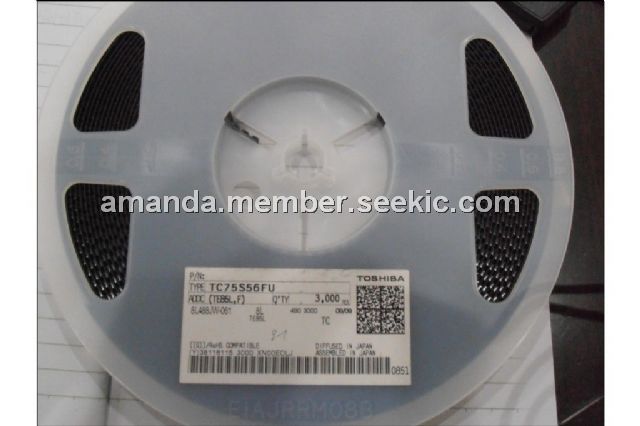

 TC75S56FU |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
