Product Summary
The PRLL4001 is a rectifier.
Parametrics
PRLL4001 absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 50V; (2)VR, continuous reverse voltage: 50V; (3)IF(AV), average forward current: 1.6A/0.68A; (4)IFRM, repetitive peak forward current: 10A; (5)IFSM, non-repetitive peak forward current: 20A; (6)Tstg, storage temperature: +175℃; (7)Tj, junction temperature: +175℃.
Features
PRLL4001 features: (1)Glass passivated; (2)High maximum operating temperature; (3)Low leakage current; (4)Excellent stability; (5)Shipped in 8 mm embossed tape; (6)Smallest surface mount rectifier outline.

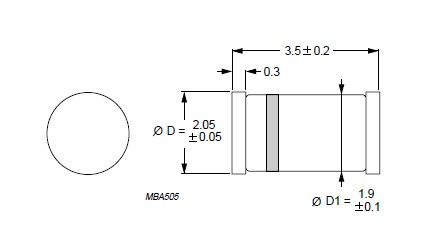

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PRLL4001 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
PRLL4001,115 |
|
RECTIFIER GPP 50V 1.6A SOD87 |
Data Sheet |
Negotiable |
|
||||
|
PRLL4001A |
Other |
|
Data Sheet |
Negotiable |
|
||||
