Product Summary
The MT3S45T is a VCO oscilletor stage with UHF low noise amplifier application.
Parametrics
MT3S45T absolute maxing ratings: (1)Collector-Base voltage VCBO: 8V; (2)Collector-Emitter voltage VCEO: 4.5V; (3)Emitter-Base voltage VEBO: 1.5V; (4)Collector-Current IC: 30mA; (5)Base-Current IB: 15mA; (6)Collector Power dissipation PC: 100mW; (7)Junction temperature Tj: 150℃; (8)Storage temperature Range Tstg: -55~150℃.
Features
MT3S45T features: (1)Low Noise Figure :NF=1.1dB (@f=2GHz); (2)High Gain:|S21e|2=12.0dB (@f=2GHz).

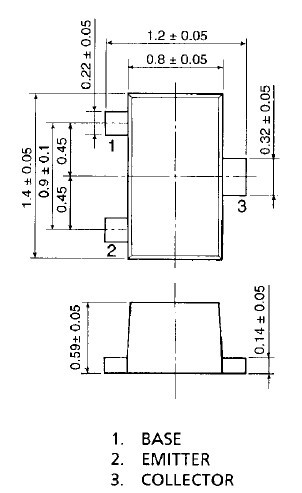

Diagrams
 |
