MIC2211-MGBML

10-MLF, dual μCap, low dropout regulator

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~0.80

PartNumber:: MIC2211-MGBML

Brand:: Micrel Semiconductor - Micrel | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-20

From Other Seller

Part Number:MIC2211-MGBML
US $0.75 - 0.80
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

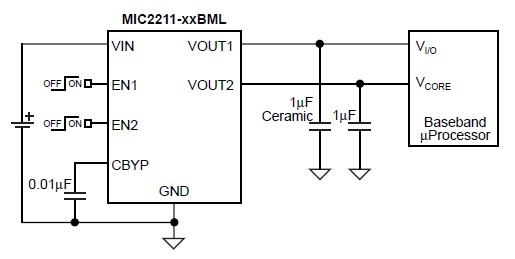

The MIC2211-MGBML is a dual μCap, low dropout regulator. The first regulator is capable of sourcing 150mA, while the second regulator can source up to 300mA. Ideal for battery operated applications, the MIC2211-MGBML offers 1% accuracy, extremely low dropout voltage (80mV @ 100mA), and extremely low ground current, only 48μA total. Equipped with TTL logic compatible enable pins, the MIC2211-MGBML can be put into a zero-off-mode current state, drawing no current when disabled. Separate enable pins allow individual control of each output voltage. The applications of the MIC2211-MGBML are: Cellular phones; Wireless modems; PDAs.

Parametrics

MIC2211-MGBML absolute maximum ratings: (1)Supply Input Voltage (VIN) 0V to 7V; (2)Enable Input Voltage (VEN) 0V to 7V; (3)Power Dissipation (PD) Internally Limited(3); (4)Junction Temperature –40℃ to +125℃; (5)Storage Temperature (TS) –65℃ to 150℃; (6)Lead Temperature (soldering, 5 sec.) 260℃.

Features

MIC2211-MGBML features: (1)Input voltage range: 2.25V to 5.5V; (2)Stable with ceramic output capacitor; (3)2 LDO outputs; (4)Low dropout voltage of 80mV @ 100mA; (5)Ultra-low quiescent current of 48μA total (24μA/LDO); (6)High output accuracy; (7)Thermal shutdown protection; (8)Current limit protection; (9)Tiny 10-pin 3mm 3mm MLFpackage.
