Product Summary

The MC14052BDR2G is an analog multiplexer. It is digitally-controlled analog switch.

Parametrics

MC14052BDR2G absolute maximum ratings: (1)VDD, DC supply voltage range: -0.5 to +18.0V; (2)Vin, Vout, input or output voltage range: -0.5 to VDD +0.5V; (3)Iin, input current per control pin: +10mA; (4)ISW, switch through current: ±25mA; (5)PD, power dissipation per package: 500mW; (6)TA, Ambient temperature range: -55 to +125℃; (7)Tstg, storage temperature range: -65 to +150℃; (8)TL, lead temperature: 260℃.

Features

MC14052BDR2G features: (1)Triple diode protection on control inputs; (2)Switch function is break before make; (3)Supply voltage range=3.0Vdc to 18Vdc; (4)Analog voltage range(VDD-VEE)=3.0 to 18V; (5)Linearized transfer characteristics; (6)Pb-free packages are available.

Diagrams

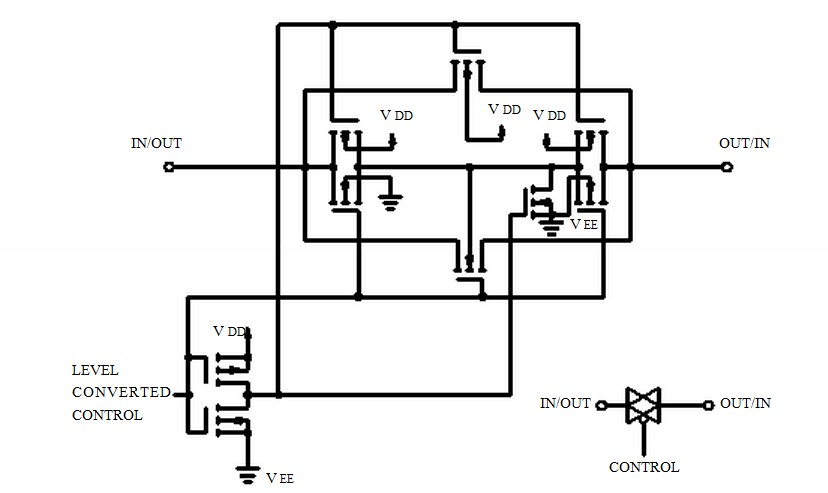

MC14052BDR2G diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC14052BDR2G
MC14052BDR2G
ON Semiconductor
Multiplexer Switch ICs LOG CMOS MLTIPLXR DUAL
Data Sheet
0-1: $0.38
1-25: $0.30
25-100: $0.26
100-500: $0.19
