Product Summary

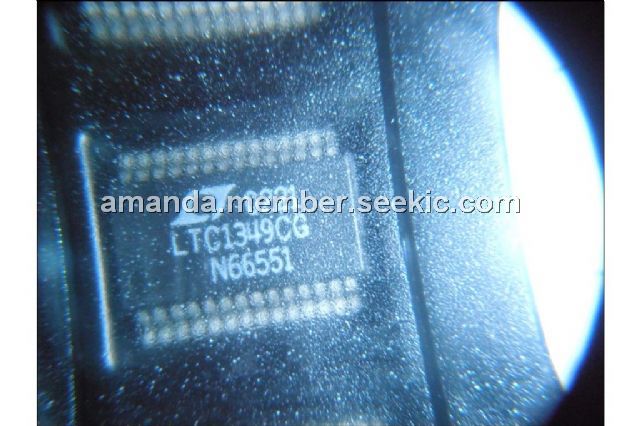

The LTC1349CG is a 5V low power transceiver with 2 receivers active in shutdown. Its applications include notebook computer, palmtop computers.
Parametrics
LTC1349CG absolute maximum ratings: (1)Supply voltage: 6V; (2)Input voltage, Driver: -0.3V to Vcc +0.3V; Receiver: -25V to 25V; ON/OFF pin: -0.3V to Vcc +0.3V; (3)Output voltage, driver: -25 to 25V; Receiver: -0.3V to VCC +0.3V; (4)Operating temperature range: 0 to 70℃; (5)Storage temperature range: -65 to 150℃; (6)Lead temperature: 300℃.
Features
LTC1349CG features: (1)Low supply current: 300μA; (2)Two receivers kept alive in shutdown; (3)ESD protection over ±10kV; (4)Operates from a single 5V supply; (5)Uses small capacitors: 0.1μF; (6)Operates to 120kBaud; (7)Three-state outputs are high impedance when off; (8)Output overvoltage does not force current back into supplies; (9)Flowthrough architecture.

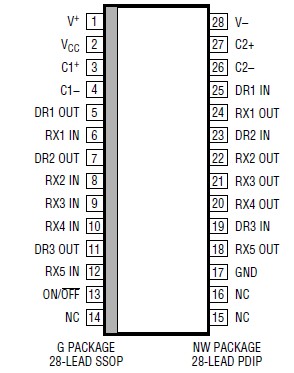

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1349CG#TRPBF |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1349CG#TR |
|
IC TXRX RS232 5V SHTDN LP 28SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1349CG#PBF |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1349CG |
|
IC TXRX 5V RS232 LOW PWR 28-SSOP |
Data Sheet |
|
|
||||||||||
