Product Summary

The LPC1111FHN33/101 is a 32-bit ARM cortex-M0 microcontroller.

Parametrics

LPC1111FHN33/101 absolute maximum ratings: (1)VDD, supply voltage: 3.6V; (2)IDD, supply current: 840mA; (3)iil, Low-level input current: 10nA; (4)IIH, high-level input current: 10nA; (5)IOZ, off-state output: 10nA.

Features

LPC1111FHN33/101 features: (1)Unique device serial number for identification; (2)Single power supply; (3)Available as LQFP48 package and HVQFN33 package; (4)LPC1100L series available as TSSOP28 package, DIP28package, TSSOP20 package and SO20package.

Diagrams

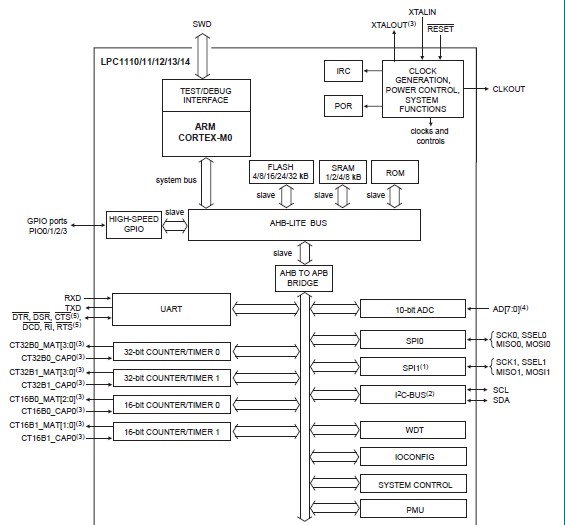

LPC1111FHN33/101 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LPC1111FHN33/101,5
LPC1111FHN33/101,5
NXP Semiconductors
ARM Microcontrollers (MCU) Cortex M0 Ultra Low Power 32 Bit MCU
Data Sheet
0-1: $1.20
1-25: $1.07
25-100: $0.97
100-250: $0.86
