Product Summary
The LM139J is a low power low offset voltage quad comparator.
Parametrics
LM139J absolute maximum ratings: (1)Supply voltage: 36VDC; (2)Differential input voltage: 36VDC; (3)Input voltage: -0.3VDC to +36VDC; (4)Input current: 50mA; (5)Power dissipation: 1050mW; (6)Storage temperature range: -65 to +150℃; (7)Operating temperature range: -55 to +125℃.
Features
LM139J features: (1)Wide supply voltage range; (2)Very low supply current drain- independent of supply voltage; (3)Low input biasing current: 25nA; (4)Low input offset current: ±5nA; (5)Offset voltage: ±3mV; (6)Input common-mode voltage range.

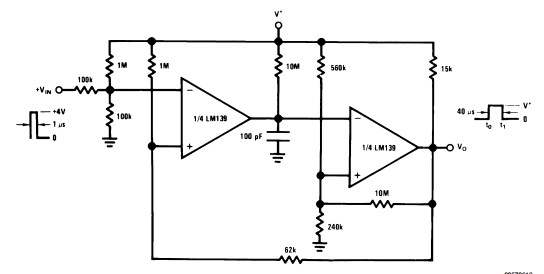

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM139J |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM139J/PB |
National Semiconductor (TI) |
Comparator ICs HI PERF QUAD COMP |
Data Sheet |
|
|
||||||||||||
|
LM139JAN |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
