Product Summary

The DMP2215L-7 is a p-channel enhancement mode field effect transistor.

Parametrics

DMP2215L-7 absolute maximum ratings: (1)Drain-source voltage, VDSS: -20V; (2)Gate-source voltage, VGSS: ±12V; (3)Drain current, ID, TA=25℃: -2.7A; TA=70℃: -2A; (4)Pulsed drain current, IDM: 8A.

Features

DMP2215L-7 features: (1)Low on-resistance; (2)Low gate threshold voltage; (3)Low input capacitance; (4)Fast switching speed; (5)Low input/output leakage; (6)Lead free by design/RoHS compliant; (7)"Green" device; (8)Qualified to AEC-Q101 standards for high reliability.

Diagrams

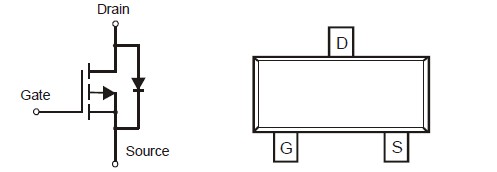

DMP2215L-7 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

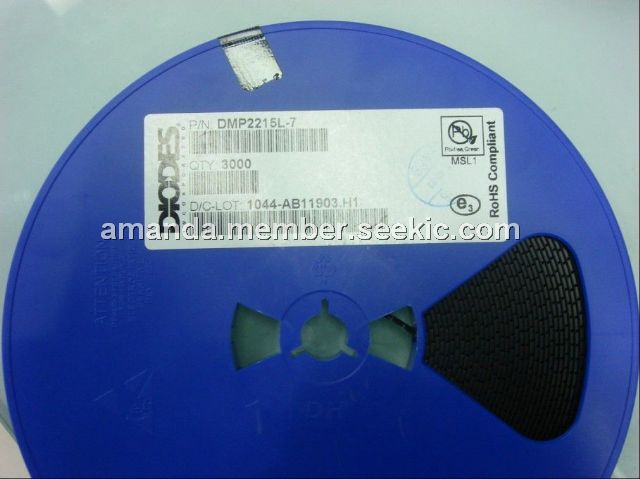

DMP2215L-7
DMP2215L-7
Diodes Inc.
MOSFET P-Channel
Data Sheet
0-1: $0.26
1-10: $0.20
10-100: $0.12
100-500: $0.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DMP2004DMK
DMP2004DMK
Other

Data Sheet
Negotiable
DMP2004DMK-7
DMP2004DMK-7
Diodes Inc.
MOSFET 500mW -20Vdss
Data Sheet
0-1750: $0.15
1750-3000: $0.13
3000-6000: $0.12
6000-12000: $0.11
DMP2004DWK
DMP2004DWK
Other

Data Sheet
Negotiable
DMP2004K
DMP2004K
Other

Data Sheet
Negotiable
DMP2004K-7
DMP2004K-7
Diodes Inc.
MOSFET P-Channel
Data Sheet
0-1: $0.31
1-10: $0.24
10-100: $0.14
100-250: $0.10
DMP2066LSS-13
DMP2066LSS-13
Diodes Inc.
MOSFET P-Channel 2.5W
Data Sheet
0-1: $0.44
1-10: $0.35
10-100: $0.23
100-500: $0.20
