Product Summary
The BA10358F-E2 is a dual ground sense operational amplifier featuring high gain and frequency compensation. The BA10358F-E2 offers a particularly wide range of operating voltages, from 3 to 32V (when using a single power supply). Current dissipation is low and remains constant regardless of the power supply voltage.
Parametrics
BA10358F-E2 absolute maxing ratings: (1)Power supply voltage VCC: 32(±16)V; (2)Power dissipation Pd: 550*mW; (3)Differential input voltage VID: ±VCC; (4)Common-mode input voltage Vl: -0.3~VCCV; (5)Operating temperature Topr: -40~+85℃; (6)Storage temperature Tstg: -55~+125℃.
Features
BA10358F-E2 features: (1)Can be driven with a single power supply; (2)Extremely low current dissipation; (3)Level is compatible with any kind of logic circuit; (4)Operating voltage range is 3 to 32V for single power supply, ±1.5 to ±16V for dual power supply.; (5)High DC voltage gain; (6)Wide frequency response.; (7)Pin assignments is the same as the general-purpose 4558 model.; (8)Compatible with model 358 operation amplifiers of other manufacturers.

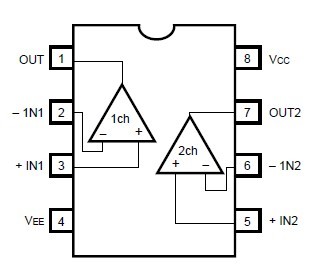

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA10358F-E2 |
ROHM Semiconductor |
Operational Amplifiers - Op Amps OPAMP DUAL 32V |
Data Sheet |
|
|
||||||||||||
