Product Summary

The AD8002AR is a dual, low power, high speed amplifier designed to operate on ±5 V supplies. The AD8002AR features unique transimpedance linearization circuitry. This allows it to drive video loads with excellent differential gain and phase performance on only 50 mW of power per amplifier. The AD8002AR is a current feedback amplifier and features gain flatness of 0.1 dB to 60 MHz while offering differential gain and phase error of 0.01% and 0.02°. This makes the AD8002AR ideal for professional video electronics such as cameras and video switchers. Additionally, the AD8002AR’s low distortion and fast settling make it ideal for buffer high speed A-to-D converters.

Parametrics

AD8002AR absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation: Plastic DIP Package (N): 1.3W, Small Outline Package (R): 0.9W, μSOIC Package (RM): 0.6W; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±1.2 V; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range N, R, RM: –65℃ to +125℃; (7)Operating Temperature Range (A Grade): –40℃ to +85℃; (8)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD8002AR features: (1)Excellent Video Specifications (RL = 150 V, G = +2): Gain Flatness 0.1 dB to 60 MHz, 0.01% Differential Gain Error, 0.028 Differential Phase Error; (2)Low Power: 5.5 mA/Amp Max Power Supply Current (55 mW); (3)High Speed and Fast Settling: 600 MHz, –3 dB Bandwidth (G = +1), 500 MHz, –3 dB Bandwidth (G = +2), 1200 V/ms Slew Rate, 16 ns Settling Time to 0.1%.

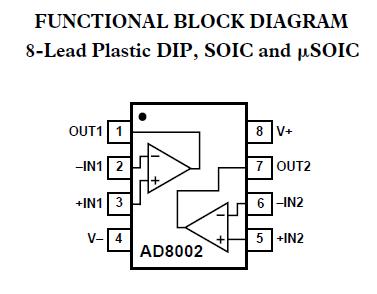

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8002AR
AD8002AR


IC OPAMP CF DUAL LP LDIST 8SOIC

Data Sheet

0-98: $3.96
AD8002AR-EBZ
AD8002AR-EBZ


BOARD EVAL FOR AD8002AR

Data Sheet

0-1: $14.38
AD8002ARM-EBZ
AD8002ARM-EBZ


BOARD EVAL FOR AD8002ARM

Data Sheet

0-1: $14.38
AD8002ARMZ
AD8002ARMZ


IC OPAMP CF DUAL LP LDIST 8MSOP

Data Sheet

0-1: $3.86
1-10: $3.48
10-25: $3.17
25-100: $2.86
100-250: $2.63
250-500: $2.39
500-1000: $2.08
1000-2500: $2.06
AD8002ARMZ-REEL
AD8002ARMZ-REEL


IC OPAMP CF DUAL LP LDIST 8MSOP

Data Sheet

0-3000: $2.06
AD8002AR-REEL
AD8002AR-REEL

Analog Devices Inc

IC OPAMP CURR FEEDBK DUAL 8-SOIC

Data Sheet

Negotiable
AD8002AR-REEL7
AD8002AR-REEL7

Analog Devices Inc

IC OPAMP CURNT FEEDBK DUAL 8SOIC

Data Sheet

1-750: $2.87
AD8002ARZ
AD8002ARZ


IC OPAMP CF DUAL LP LDIST 8SOIC

Data Sheet

0-1: $4.40
1-10: $3.96
10-100: $3.26
100-250: $2.99
250-500: $2.73
500-1000: $2.38
1000-2500: $2.35
