Product Summary

The TLE4276DV is a low drop voltage regulator.

Parametrics

TLE4276DV absolute maximum ratings: (1)Voltage, V1: 45V; (2)Inhibit INH voltage: 45V; (3)Voltage adjust input VA Voltage: 10V; (4)Output Q, voltage: 40V; (5)Ground GND current: 100mA; (6)Junction temperature: 150℃.

Features

TLE4276DV features: (1)5V, 8.5V, 10V or variable output voltage; (2)Output voltage tolerance ≤±4%; (3)400mA current capability; (4)Low-drop voltage; (5)Inhibit input; (6)Very low current consumption; (7)Short-circuit-proof; (8)Reverse polarity proof; (9)Suitable for use in automotive electronics; (10)Green product(RoHS compliant); (11)AEC Qualified.

Diagrams

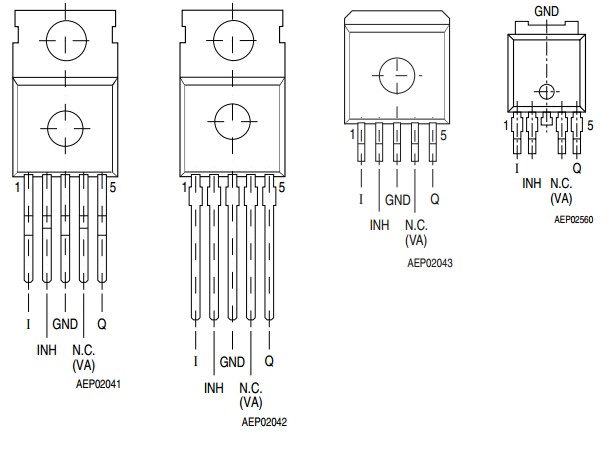

TLE4276DV pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLE4276DV
TLE4276DV
Infineon Technologies
Low Dropout (LDO) Regulators LW Drop VOLT REGLTR 5/8.5/10V 400mA
Data Sheet
0-1740: $0.67
1740-2500: $0.62
2500-5000: $0.60
5000-10000: $0.58
TLE4276DV50XT
TLE4276DV50XT
Infineon Technologies
Low Dropout (LDO) Regulators Low Drop Voltage Regulator
Data Sheet
0-1740: $0.64
1740-2000: $0.60
2000-2500: $0.60
2500-5000: $0.58
TLE4276DVXT
TLE4276DVXT
Infineon Technologies
Low Dropout (LDO) Regulators Low Drop Voltage Regulator
Data Sheet
0-1740: $0.64
1740-2000: $0.60
2000-2500: $0.60
2500-5000: $0.58
