MIC94060YC6

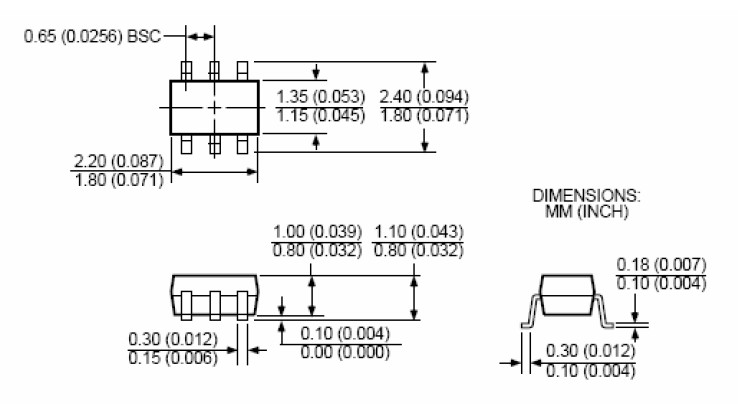

High Side, Power Switch, SC70-6

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.23~0.26 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.23~0.26

PartNumber:: MIC94060YC6

Brand:: Micrel Semiconductor - Micrel | Pack: SC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-20

From Other Seller

Part Number:MIC94060YC6
US $0.23 - 0.26
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MIC94060YC6 is a high-side load switch designed for operation between 1.7V to 5.5V. The device contains a low on-resistance P-channel MOSFET that supports over 2A of continuous current. The MIC94060-61 feature rapid turn on while MIC94062-63 provides a slew rate controlled Soft-Start turn-on of 800μs(typical) to prevent in-rush current from glitching supply rails. An active pull-down on the enable input keeps MIC94060YC6 in a default OFF state until the EN pin is pulled to a high level. Built-in level shift circuitry allows low voltage logic signals to switch higher supply voltages, or vice versa; high level logic signals can control low level voltages. The applications of the MIC94060YC6 are: Cellular phones; PDAs; MP3 players; Digital Cameras; Portable instrumentation; Battery switch-over circuits; Level translator.

Parametrics

MIC94060YC6 absolute maximum ratings: (1)Input Voltage (VIN): +6V; (2)Enable Voltage (VEN): +6V; (3)Continuous Drain Current (ID)TA = 25℃: ±2A; (4)TA = 85℃: ±1.4A Pulsed Drain Current (IDP) (4): ±6A; (5)Continuous Diode Current (IS): –50mA; (6)Storage Temperature (Ts): –55℃ to +150℃; (7)EDS Rating – HBM: 4KV.

Features

MIC94060YC6 features: (1)1.7V to 5.5V input voltage range; (2)2A continuous operating current; (3)77m(typ) RON; (4)Built-in level shift for control logic; can be operated by 1.5V logic.; (5)Low 2μA quiescent current; (6)Soft-Start: MIC94062-63; (7)Micro-power shutdown <1μA; (8)Load discharge circuit: MIC94061, MIC94063 Space saving 1.2x1.6 mm Thin MLFpackage.
