Product Summary

The MC78L05ABDR2G is a positive voltage regulator, which is inexpensive, an easy-to-use device suitable for a multitude fo applications that require a regulated supply of up to 100mA.

Parametrics

MC78L05ABDR2G absolute maximum ratings: (1)Input voltage, VI: 30Vdc; (2)Storage temperature range, Tstg: -65 to +150℃; (3)Operating junction temperature range, TJ: 0 to +150℃.

Features

MC78L05ABDR2G features: (1)Wide range of available, fixed output voltages; (2)Low cost; (3)Internal short circuit current limiting; (4)Internal thermal overload protection; (5)No external components required; (6)Complementary negative regulators offered; (7)Pb-free packages are available; (8)NCV prefix for automotive and other applications requiring site.

Diagrams

MC78L05ABDR2G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

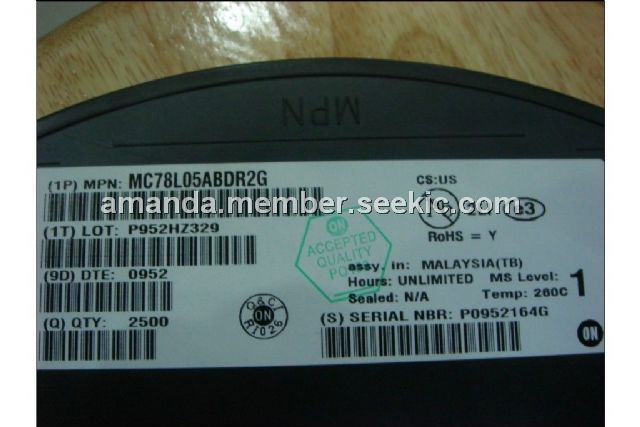

MC78L05ABDR2G
MC78L05ABDR2G
ON Semiconductor
Linear Regulators - Standard 5V 100mA Postive
Data Sheet
0-1: $0.19
1-25: $0.17
25-100: $0.12
100-500: $0.10
